Affordable housing is provided to middle to low-income households to solve the problem of  skyrocketing housing price. Local governments usually warrant state-owned land to real estate developers, who are responsible for the finance and construction of affordable housing. Featured by low rent as well as applicability, affordable housing requires high construction standards and relatively low constructing costs. Alv aluminum formwork system is specifically designed to meet these requirements.

Alv aluminum formwork systems provide:

Strong & Durable Formwork,

Easy to Use, Simple Assembly,

Lower Material & Labor Costs,

Increased Worker Productivity,

Speedy Construction,

Superior Finished Project Quality.

Aluminium shuttering construction makes the affordable housing fast, simple, adaptable, very cost effective.

1. Eco-friendly

Use A6061-T6, the most suitable material for industrial and residential construction.

It is a green formwork with low carbon emissions.

Reused 300 times make maximized ROI with multiple projects.

80% standard formwork panels could be reused.

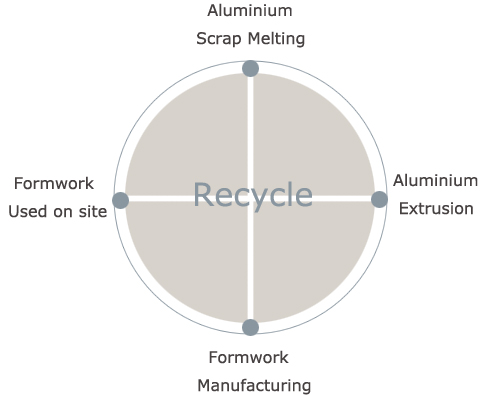

The Aluminium materials recycle value is up to 30% of the purchase cost.

2. Easy to use

Light enough to be handed by for a single worker: Average weight about 23 - 27 kg/m2

No heavy lifting or cranes are required.

The simplicity of assembly is ideal for unskilled labor and enables unskilled labor to achieve the highest of production rates.

Short project period: 4-5 days/floor



3. Cost saving

Save much cost than wooden formwork once turnover 55 times if buying and 25 times when it is rental panels, meanwhile it can reduce labor cost, and cost for transportation of raw materials, material loss, and waste disposal, etc.

Formwork	Aluminium Formwork	Euro-Formwork	Plywood Formwork
Price(USD)	235.00/M2	135.00/M2	25.00/M2
Labor cost(USD)	4.00/M2	4.00/M2	4.66/M2
Machinery cost(USD)	0.00/M2	1.00/M2	0.20/M2
Recycle 30 times cost(USD)	11.83/M2	9.33/M2	9.50/M2
Recycle 60 times cost(USD)	7.83/M2	9.33/M2	9.50/M2
Recycle 90 times cost(USD)	6.66/M2	9.33/M2	9.50/M2

4. High quality

Alv Aluminium formwork has accuracy in 96% for both horizontal and vertical structure.

The concrete surface flat & smooth.

No need heavy backing plaster, effectively for plaster cost saving.

Adopts the integrative design, load 60KN/ m2, which could reduce the safety loophole leaded by the construction and materials.
